Solar Power

Active Clothing Co. Ltd. > Solar Power

System Metrics

x 1000 kWh (Units)

Percentage

kWh/kWp/year

503.04 kWp

500.00 kW

1.01

Meteonorm

Your installation uses latest technology in solar

Waaree Arka Series WSMD – 515 to 545 WSMD
545 – 923.00 No

HT SeriesW3 – 100K Waaree – 5.00 No.

Premium Walkways – 149.83 m

Premium Handrail – 222.45 m

Premium Structure

PREMIUM – 5.00 No.

During the first year of operations, your system is expected to produce 655.48 x 1000 kWh over the year

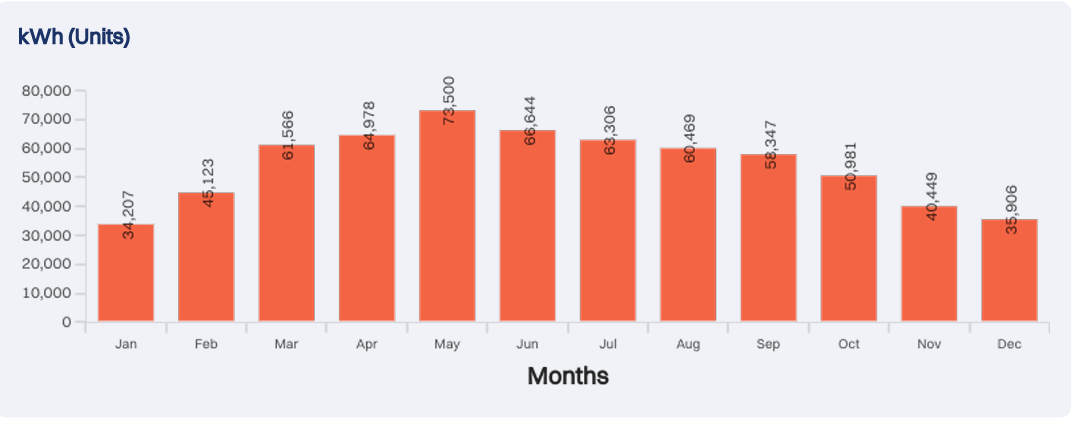

Expected average generation of the system

Yearly degradation rate

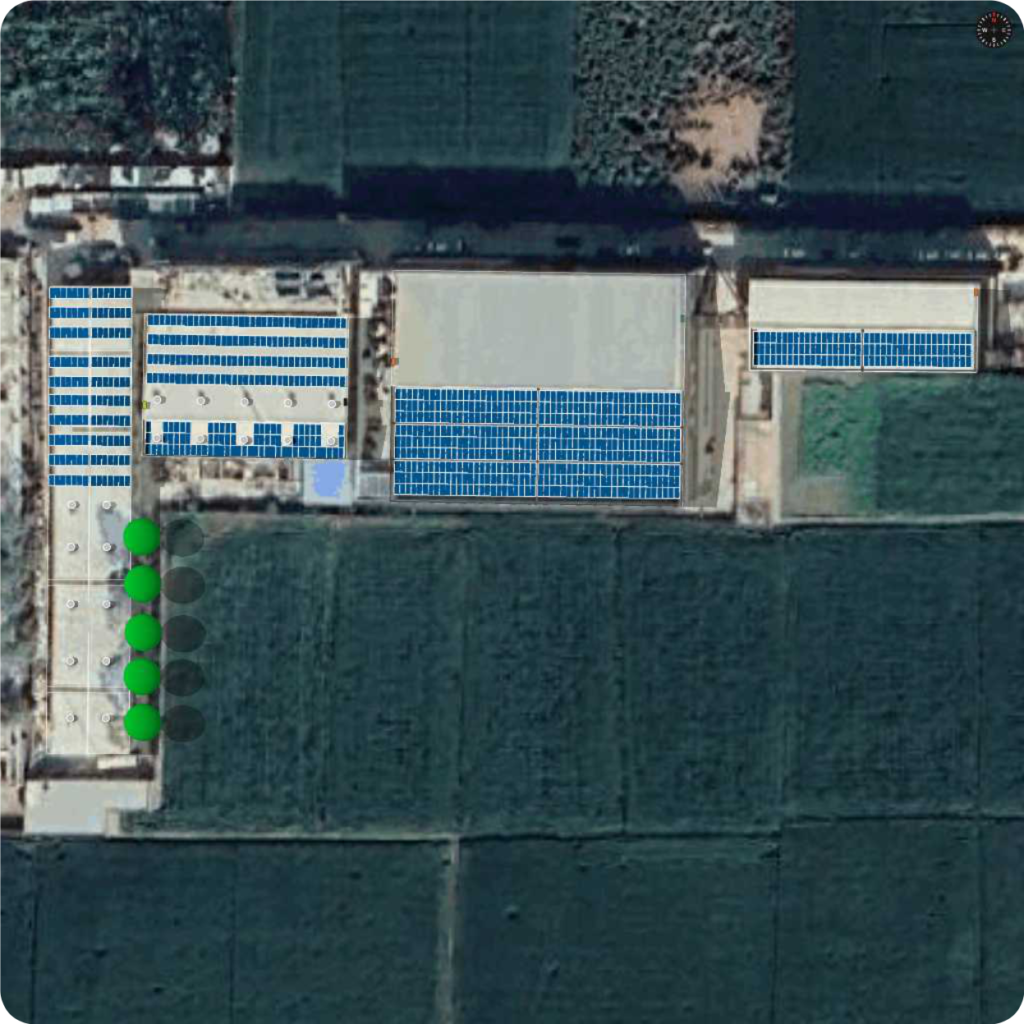

Name	Orientation	Tilt	Azimuth	Row Spacing	Frame Size	Module	Power	Solar Access
Subarray #100	Portrait	5°	180.89°	0.025 m	3x25	75	40.88 kWp	95.42%
Subarray #100	Portrait	5°	180.89°	0.025 m	3x25	375	204.38 kWp	95.42%
Subarray #26	Portrait	5°	180.51°	0.025 m	3x19	57	31.07 kWp	95.42%
Subarray #26	Portrait	5°	180.51°	0.025 m	3x19	57	31.07 kWp	95.42%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x35	35	19.08 kWp	96.57%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x1	2	1.09 kWp	95.42%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x5	10	5.45 kWp	95.77%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x5	10	5.45 kWp	95.99%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x5	10	5.45 kWp	96.12%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x5	10	5.45 kWp	96.03%
Subarray #367	Portrait	8°	181.06°	0.025 m	1x1	2	1.09 kWp	94.30%
Subarray #933	Portrait	15°	180.37°	1.802 m	1x7	21	11.45 kWp	98.69%
Subarray #933	Portrait	15°	180.37°	1.802 m	1x7	7	3.82 kWp	98.65%
Subarray #933	Portrait	15°	180.37°	1.802 m	1x7	21	11.45 kWp	98.63%
Subarray #933	Portrait	15°	180.37°	1.802 m	1x7	7	3.82 kWp	98.65%
Subarray #933	Portrait	15°	180.37°	1.802 m	1x7	14	7.63 kWp	98.72%

Array	Jan	Feb	Mar	Apr	May	Jun	July	Aug	Sept	Oct	Nov	Dec
100	84	85	92	99	100	100	100	100	95	90	85
131	84	85	92	99	100	100	100	100	95	90	85
68	84	85	92	99	100	100	100	100	95	90	85	82
69	84	85	92	99	100	100	100	100	95	90	85	82
446	87	88	94	100	100	100	100	100	96	92	87	85
447	84	84	93	99	100	100	100	100	96	90	85	83
448	84	86	93	99	100	100	100	100	95	91	86	83
449	85	87	93	100	100	100	100	100	96	91	86	83
450	85	87	93	100	100	100	100	100	96	91	87	84
451	85	87	93	100	100	100	100	100	96	91	86	84
452	79	83	92	99	100	100	100	100	95	89	82	79
1052	92	94	97	100	100	100	100	100	99	96	93	92
1053	92	94	97	100	100	100	100	100	99	96	93	91
1054	92	94	97	100	100	100	100	100	99	96	93	91
1055	92	94	97	100	100	100	100	100	99	96	93	91
1056	92	94	97	100	100	100	100	100	99	96	93	92
1057	93	94	97	100	100	100	100	100	99	96	93	92
1060	92	93	97	100	100	100	100	100	99	96	93	91
1061	92	93	97	100	100	100	100	100	99	96	93	91
1062	92	93	97	100	100	100	100	100	99	96	93	91
1063	92	93	97	100	100	100	100	100	99	96	93	91
1064	93	94	97	100	100	100	100	100	99	96	93	92
1065	92	93	97	100	100	100	100	100	99	96	93	91
